Introduction
In randomized control trials, treatment assignment is random and independent of potential confounders. Ignorability or exchangebility assumption are fulfilled. Determining average causal effects is, therefore, straightforward. However, in observational studies treatment assignment is not random. This makes determining the causal effects of treatment difficult. Individuals get assigned to certain treatment based on their conditions or background characteristics. These characteristics will influence both treatment and outcome and create confounding. There fore the estimated effects sizes will be biased and may be far from causal effects
Let
- \(T \in \{0,1\}\) be the treatment,
- \(Y\) be the observed outcome,
- \(X\) be the set of baseline covariates,
- \(Y(1)\) and \(Y(0)\) be potential outcomes under treatment and control.
The individual level causal effect is
\[ \tau = Y(1) - Y(0) \]
but for any given person, only one potential outcome can ever be observed, either the result of receiving the treatment or the result of not receiving it, but never both. This is the fundamental problem of potential outcomes scenario.
If we compare outcomes without adjustment:
\[ E[Y \mid T=1] - E[Y \mid T=0] \]
the difference is generally biased because the groups differ in covariates.

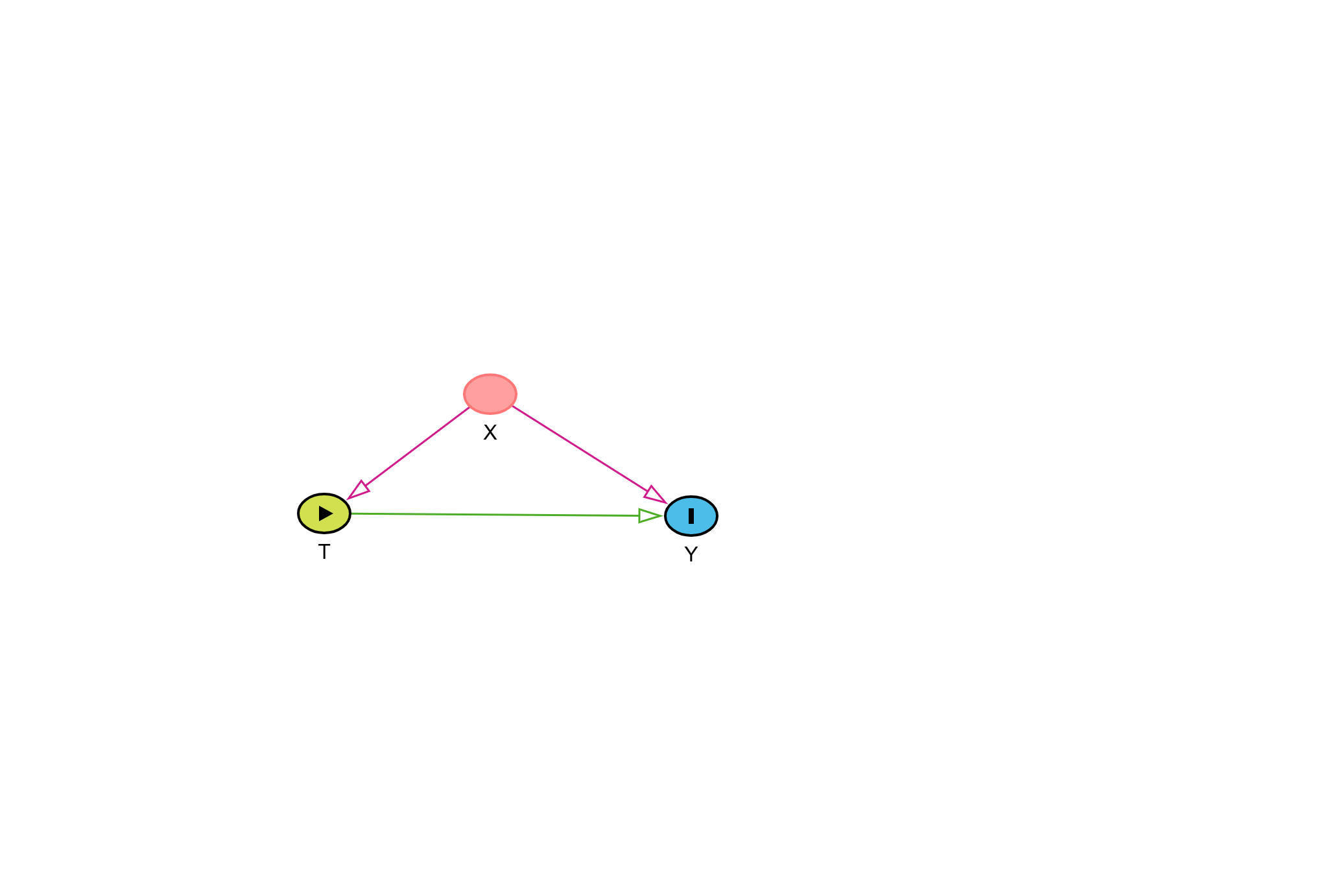

Confounding as a backdoor path
A confounder affects both treatment and outcome. This creates a backdoor path:
\[
T \leftarrow X \to Y
\]
To identify causal effects, we assume conditional exchangeability:
\[ Y(1), Y(0) \perp T \mid X \]
meaning that, being assigned to either of the treatment arms is as good as random assignment given the set of potential confounders(X).Therefore, after properly adjusting for relevant covariates(potential confounders), treatment assignment can be close to or as good as random. This is called conditional exchangeabilty or conditional ignorability or causal sufficiency.
The propensity score matching method
Propensnsity score is the probability of receiving treatment. More formally, the propensity score (Rosenbaum and Rubin 1983) is defined as:
\[ e(X) = P(T = 1 \mid X) \]

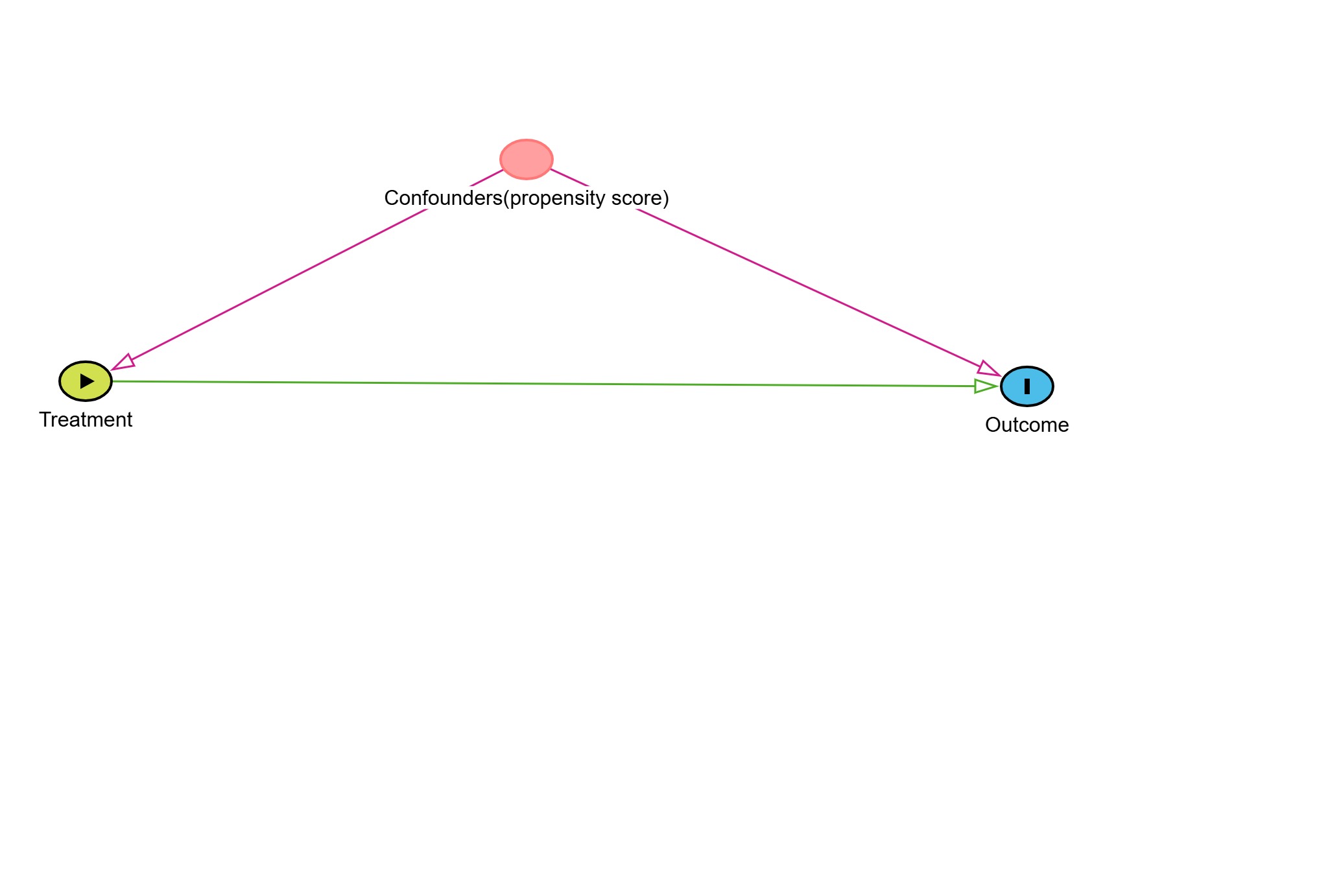

If exchangeability holds given𝑋, then it also holds given the scalar \[e(X)\]
\[ Y(1), Y(0) \perp T \mid e(X) \]
This means that conditioning on a single agregated scalar(score) \(e(X)\) is sufficient to remove confounding due to all observed covariates \(X\).
Goal of Propensity Score Matching
Propensity Score Matching (PSM) matches treated individuals with control individuals using propensity scores, creating a balanced sample. After matching, the Average Treatment Effect on the Treated (ATT) is simply estimated as:
\[ ATT = E[Y(1) - Y(0) \mid T = 1] \]
For this tutorial, I will use the Lalonde Dataset. The data sets has 445 observations with 185 treated and 260 control subjects, and 10 variables.
treatment(1 = treated; 0 = control) (Training program)age, measured in years;education, measured in years;black, indicating race (1 if black, 0 otherwise);hispanic, indicating race (1 if Hispanic, 0 otherwise);married, indicating marital status (1 if married, 0 otherwise);nondegree, indicating high school diploma (1 if no degree, 0 otherwise);re74, real earnings in 1974;re75, real earnings in 1975.
The last variabele is treatment , the real the earnings in 1978. That
is our outcome variable. You may take a look at the datasets and the
source
here.

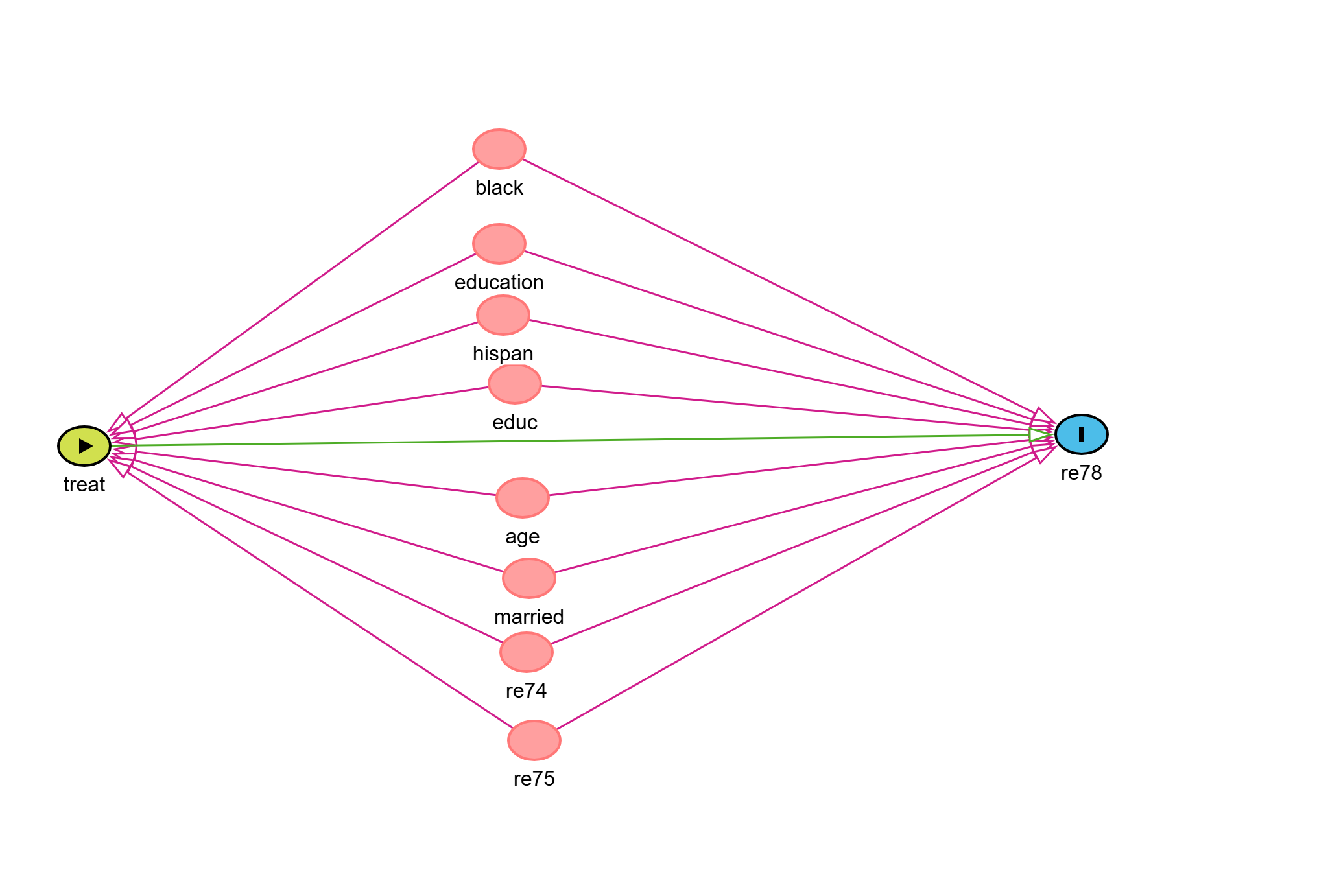

Before we dive into the analysis, we will construct the DAG for this. We
want to see whether the treatment (training program) has an effect on
earning(re78). To construct DAG, I used the web-based DAGITTY package.
You can also use the dagitty R-package. I found the web-version easier
to adjust the plot. We have a simple DAG plot. All of the 9 confounders
are connected to both treatment and the outcome, These are classic set
of confounders. The aim of matching is to block all backdoor paths from
treatment exposure( treat) to outcome(re78) by balancing on these
covariates.
Mow let’s proceed to the analysis.
library(tableone) # for easy
library(Matching)
library(MatchIt)
data(lalonde) #load the dataset
df <- lalonde
table(df$race)
black hispan white
243 72 299 # Create race indicators
df$black <- as.numeric(df$race == "black")
df$hispan <- as.numeric(df$race == "hispan")
# Confounders: let's call them xvars
xvars <- c("age", "educ", "black", "hispan",
"married", "nodegree", "re74", "re75")
# Table 1 before matching
table1_before <- CreateTableOne(vars = xvars, data = df, strata = "treat", test = FALSE)
print(table1_before, smd = TRUE) Stratified by treat
0 1 SMD
n 429 185
age (mean (SD)) 28.03 (10.79) 25.82 (7.16) 0.242
educ (mean (SD)) 10.24 (2.86) 10.35 (2.01) 0.045
black (mean (SD)) 0.20 (0.40) 0.84 (0.36) 1.668
hispan (mean (SD)) 0.14 (0.35) 0.06 (0.24) 0.277
married (mean (SD)) 0.51 (0.50) 0.19 (0.39) 0.719
nodegree (mean (SD)) 0.60 (0.49) 0.71 (0.46) 0.235
re74 (mean (SD)) 5619.24 (6788.75) 2095.57 (4886.62) 0.596
re75 (mean (SD)) 2466.48 (3292.00) 1532.06 (3219.25) 0.287The standardized mean differences show imbalance in several baseline covariates. This is why we need to balance. PSM is needed.
Greedy Matching on Covariates
Greedy matching also known as nearest neighbor matching. It uses Mahalanobis distance, Euclidean distance or propensity scores. Fore more details, check the Matchit package
greedy_match <- Match(Tr = df$treat, M = 1, X = df[xvars])
matched1 <- df[unlist(greedy_match[c("index.treated", "index.control")]),]
table_greedy <- CreateTableOne(vars = xvars, data = matched1,
strata = "treat", test = FALSE)
print(table_greedy, smd = TRUE) Stratified by treat
0 1 SMD
n 207 207
age (mean (SD)) 24.60 (8.14) 25.04 (7.14) 0.058
educ (mean (SD)) 10.45 (1.91) 10.35 (1.95) 0.050
black (mean (SD)) 0.85 (0.36) 0.86 (0.35) 0.014
hispan (mean (SD)) 0.05 (0.22) 0.05 (0.22) <0.001
married (mean (SD)) 0.17 (0.38) 0.17 (0.38) <0.001
nodegree (mean (SD)) 0.71 (0.46) 0.71 (0.46) <0.001
re74 (mean (SD)) 1930.36 (4062.55) 1877.00 (4662.18) 0.012
re75 (mean (SD)) 1000.14 (2333.95) 1377.81 (3076.01) 0.138As you can see, greedy matching has already greatly achieved matching. However, matching directly on the covariates improves balance but may not be optimal. Propensity score matching usually performs better.
Estimate the Propensity Score
Estimating propensity score is simply done by doing logistic regression of treatment variable on the set of confounders.

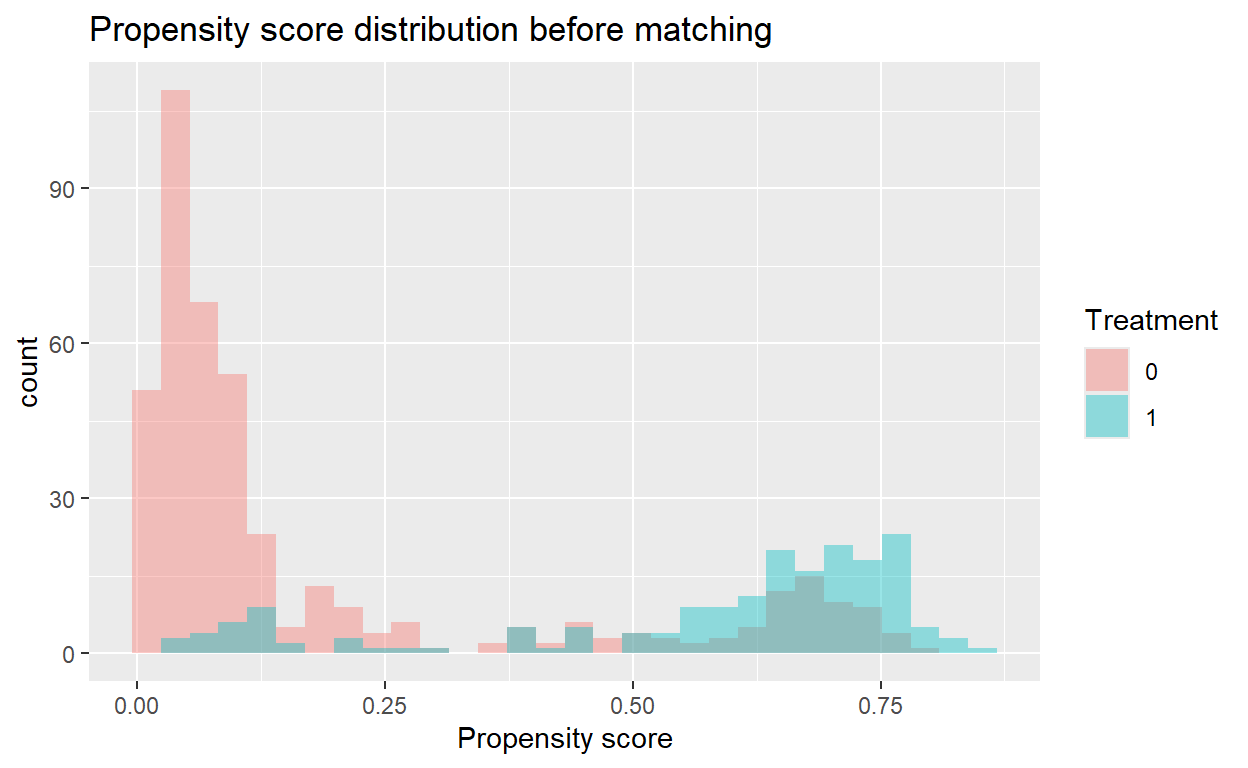

Check overlap
library(ggplot2)
ggplot(df, aes(x = pscore, fill = factor(treat))) +
geom_histogram(alpha = 0.4, position = "identity", bins = 30) +
labs(title = "Propensity score distribution before matching",
fill = "Treatment", x = "Propensity score")
Then let’s do the matching and check the plot after matching
m.out1 <- matchit(treat ~ age + educ + black + hispan + married +
nodegree + re74 + re75,
data = df, method = "nearest")
summary(m.out1)
Call:
matchit(formula = treat ~ age + educ + black + hispan + married +
nodegree + re74 + re75, data = df, method = "nearest")
Summary of Balance for All Data:
Means Treated Means Control Std. Mean Diff. Var. Ratio
distance 0.5774 0.1822 1.7941 0.9211
age 25.8162 28.0303 -0.3094 0.4400
educ 10.3459 10.2354 0.0550 0.4959
black 0.8432 0.2028 1.7615 .
hispan 0.0595 0.1422 -0.3498 .
married 0.1892 0.5128 -0.8263 .
nodegree 0.7081 0.5967 0.2450 .
re74 2095.5737 5619.2365 -0.7211 0.5181
re75 1532.0553 2466.4844 -0.2903 0.9563
eCDF Mean eCDF Max
distance 0.3774 0.6444
age 0.0813 0.1577
educ 0.0347 0.1114
black 0.6404 0.6404
hispan 0.0827 0.0827
married 0.3236 0.3236
nodegree 0.1114 0.1114
re74 0.2248 0.4470
re75 0.1342 0.2876
Summary of Balance for Matched Data:
Means Treated Means Control Std. Mean Diff. Var. Ratio
distance 0.5774 0.3629 0.9739 0.7566
age 25.8162 25.3027 0.0718 0.4568
educ 10.3459 10.6054 -0.1290 0.5721
black 0.8432 0.4703 1.0259 .
hispan 0.0595 0.2162 -0.6629 .
married 0.1892 0.2108 -0.0552 .
nodegree 0.7081 0.6378 0.1546 .
re74 2095.5737 2342.1076 -0.0505 1.3289
re75 1532.0553 1614.7451 -0.0257 1.4956
eCDF Mean eCDF Max Std. Pair Dist.
distance 0.1321 0.4216 0.9740
age 0.0847 0.2541 1.3938
educ 0.0239 0.0757 1.2474
black 0.3730 0.3730 1.0259
hispan 0.1568 0.1568 1.0743
married 0.0216 0.0216 0.8281
nodegree 0.0703 0.0703 1.0106
re74 0.0469 0.2757 0.7965
re75 0.0452 0.2054 0.7381
Sample Sizes:
Control Treated
All 429 185
Matched 185 185
Unmatched 244 0
Discarded 0 0matched_df <- match.data(m.out1) # we create our full matched datsetThen check visually after matching

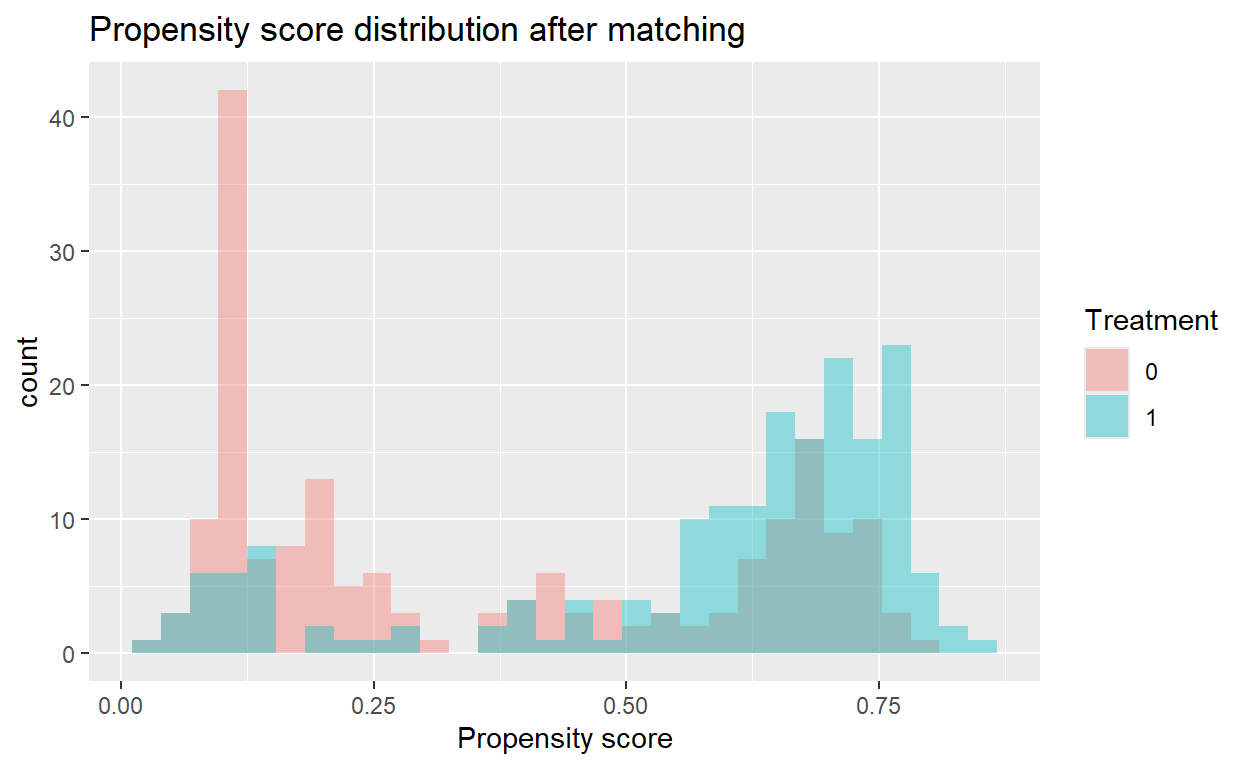

ggplot(matched_df, aes(x = pscore, fill = factor(treat))) +
geom_histogram(alpha = 0.4, position = "identity", bins = 30) +
labs(title = "Propensity score distribution after matching",
fill = "Treatment", x = "Propensity score")
Let’s now check smd for the PSM-matched datasets.
table_psm_matched <- CreateTableOne(vars = xvars, data = matched_df,
strata = "treat", test = FALSE)
print(table_psm_matched, smd = TRUE) Stratified by treat
0 1 SMD
n 185 185
age (mean (SD)) 25.30 (10.59) 25.82 (7.16) 0.057
educ (mean (SD)) 10.61 (2.66) 10.35 (2.01) 0.110
black (mean (SD)) 0.47 (0.50) 0.84 (0.36) 0.852
hispan (mean (SD)) 0.22 (0.41) 0.06 (0.24) 0.466
married (mean (SD)) 0.21 (0.41) 0.19 (0.39) 0.054
nodegree (mean (SD)) 0.64 (0.48) 0.71 (0.46) 0.150
re74 (mean (SD)) 2342.11 (4238.98) 2095.57 (4886.62) 0.054
re75 (mean (SD)) 1614.75 (2632.35) 1532.06 (3219.25) 0.028Check covariate balance using Love plot

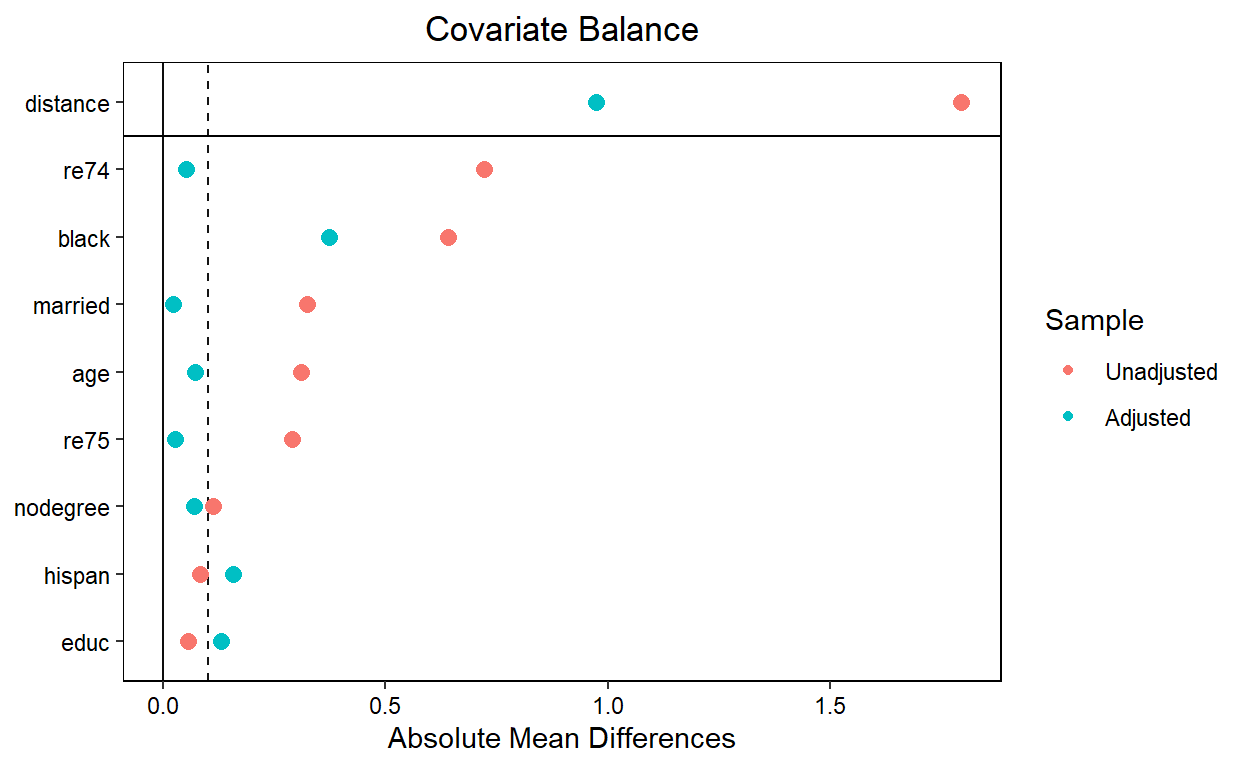

library(cobalt)
love.plot(m.out1, stats = "mean.diffs",
threshold = 0.1, abs = TRUE,
var.order = "unadjusted")
As you can see most standardized mean differences drop below 0.1 after matching. This shows good covariate balance is achieved and we can move on to our causal effect calculations.
Outcome analysis
We use paired t-test to evaluate the outcome data on our PSM-matched data sets.Mean difference is our effect size measure.
y_trt <- matched_df$re78[matched_df$treat == 1]
y_ctrl <- matched_df$re78[matched_df$treat == 0]
t.test(y_trt, y_ctrl, paired = TRUE)
Paired t-test
data: y_trt and y_ctrl
t = 1.1866, df = 184, p-value = 0.2369
alternative hypothesis: true difference in means is not equal to 0
95 percent confidence interval:
-592.7088 2381.4438
sample estimates:
mean of the differences
894.3675 The difference in means is the Average Treatment Effect on the Treated (ATT). This estimate reflects the causal effect of the training program on those who participated, under the assumption that all confounders have been adequately balanced.
PSM using caliper
Caliper matching prevents poor matches and often improves covariate balance even further. This is simply achieved by setting caliper value from the Match() function. Observations with higher distance will be removed(less match)
pscore1 <- df$pscore
psmatch2 <- Match(Tr = df$treat, M = 1, X = log(pscore1),
replace = FALSE, caliper = 0.1)
matched2 <- df[unlist(psmatch2[c("index.treated", "index.control")]),]
table_caliper <- CreateTableOne(vars = xvars, strata = "treat", test = FALSE,
data = matched2)
print(table_caliper, smd = TRUE) Stratified by treat
0 1 SMD
n 112 112
age (mean (SD)) 26.22 (10.82) 26.17 (7.18) 0.006
educ (mean (SD)) 10.53 (2.68) 10.31 (2.33) 0.085
black (mean (SD)) 0.72 (0.45) 0.74 (0.44) 0.040
hispan (mean (SD)) 0.10 (0.30) 0.10 (0.30) <0.001
married (mean (SD)) 0.23 (0.42) 0.24 (0.43) 0.021
nodegree (mean (SD)) 0.61 (0.49) 0.65 (0.48) 0.092
re74 (mean (SD)) 2578.90 (4484.64) 2156.96 (5627.20) 0.083
re75 (mean (SD)) 1851.00 (2756.63) 1063.68 (2619.06) 0.293From the smd, values setting the caliper has achieved a better balance but smaller sample size. More unmatched observations are dropped.
Now, outcome analysis after matching using caliper
y_trt <- matched2$re78[matched2$treat == 1]
y_ctrl <- matched2$re78[matched2$treat == 0]
t.test(y_trt, y_ctrl, paired = TRUE)
Paired t-test
data: y_trt and y_ctrl
t = 1.3221, df = 111, p-value = 0.1889
alternative hypothesis: true difference in means is not equal to 0
95 percent confidence interval:
-550.5773 2757.9256
sample estimates:
mean of the differences
1103.674 The mean of the difference is 1300(95%CI: -340, 2942) is our final causal estimate. It tells us how much the training program increased the average post intervention earnings among participants.However, the 96%CI includes 0. Hence no causal effect of the treatment(training programs) on post intervention earnings!
Propensity score matching for binary outcome data
For categorical outcomes, the analysis is similar but the effect size measures are causal risk difference, causal risk ration, causal odds ratio, etc. We can take a look at the Right heart catheterization (RHC) data(freely available).
The treatment variable is:
treatment: received RHC (1) or not (0)
The outcome is:
died: death during the hospital stay (1= died,0= survived)
In addition, the dataset contains several baseline characteristics measured at or shortly before the decision to provide RHC treatment, for example:
- Demographics:
age,female - Clinical severity and physiology: mean blood pressure at baseline (
meanbp1), acute physiology score (aps1) - Primary disease category at ICU admission: ARF, CHF, Cirrhosis, Colon cancer, Coma, Lung cancer, Multiple organ system failure with malignancy (MOSF), Multiple organ system failure with sepsis (sepsis)
These variables are strong candidates for confounders, because they are likely to influence both the decision to use RHC and the risk of death. The goal of propensity score matching is to create treated and untreated groups that are comparable with respect to these measured confounders, and then estimate the causal effect of RHC on mortality within this matched sample.
We assume that the decision to use RHC is not random. It is influenced by characteristics of the patient such as age, sex, underlying disease category, and severity at baseline (for example APS score and mean blood pressure). The same characteristics also affect the risk of death(outcome). It has several confounders. For this tutorial, we only look at a handful of them.
Load the data sets and do a quick cleaning
cat1 cat2 ca sadmdte dschdte dthdte lstctdte
1 COPD <NA> Yes 11142 11151 NA 11382
2 MOSF w/Sepsis <NA> No 11799 11844 11844 11844
3 MOSF w/Malignancy MOSF w/Sepsis Yes 12083 12143 NA 12400
death cardiohx chfhx dementhx psychhx chrpulhx renalhx liverhx
1 No 0 0 0 0 1 0 0
2 Yes 1 1 0 0 0 0 0
3 No 0 0 0 0 0 0 0
gibledhx malighx immunhx transhx amihx age sex edu
1 0 1 0 0 0 70.25098 Male 12.00000
2 0 0 1 1 0 78.17896 Female 12.00000
3 0 1 1 0 0 46.09198 Female 14.06992
surv2md1 das2d3pc t3d30 dth30 aps1 scoma1 meanbp1 wblc1 hrt1
1 0.6409912 23.50000 30 No 46 0 41 22.09765620 124
2 0.7549996 14.75195 30 No 50 0 63 28.89843750 137
3 0.3169999 18.13672 30 No 82 0 57 0.04999542 130
resp1 temp1 pafi1 alb1 hema1 bili1 crea1 sod1
1 10 38.69531 68.0000 3.500000 58.00000 1.0097656 1.1999512 145
2 38 38.89844 218.3125 2.599609 32.50000 0.6999512 0.5999756 137
3 40 36.39844 275.5000 3.500000 21.09766 1.0097656 2.5996094 146
pot1 paco21 ph1 swang1 wtkilo1 dnr1 ninsclas
1 4.000000 40 7.359375 No RHC 64.69995 No Medicare
2 3.299805 34 7.329102 RHC 45.69998 No Private & Medicare
3 2.899902 16 7.359375 RHC 0.00000 No Private
resp card neuro gastr renal meta hema seps trauma ortho adld3p
1 Yes Yes No No No No No No No No 0
2 No No No No No No No Yes No No NA
3 No Yes No No No No No No No No NA
urin1 race income ptid
1 NA white Under $11k 00005
2 1437 white Under $11k 00007
3 599 white $25-$50k 00009# Prepare binary variables
mydata <- rhc %>%
mutate(
ARF = as.numeric(cat1 == "ARF"),
CHF = as.numeric(cat1 == "CHF"),
Cirr = as.numeric(cat1 == "Cirrhosis"),
colcan = as.numeric(cat1 == "Colon Cancer"),
Coma = as.numeric(cat1 == "Coma"),
lungcan = as.numeric(cat1 == "Lung Cancer"),
MOSF = as.numeric(cat1 == "MOSF w/Malignancy"),
sepsis = as.numeric(cat1 == "MOSF w/Sepsis"),
female = as.numeric(sex == "Female"),
died = as.numeric(death == "Yes"),
treatment = as.numeric(swang1 == "RHC")
) %>%
select(
ARF, CHF, Cirr, colcan, Coma, lungcan, MOSF, sepsis,
age, female, meanbp1, aps1, treatment, died
)Fit the propensity score model
Propensity score matching (1:1 nearest neighbour)
m.out <- matchit(
treatment ~ age + female + meanbp1 +
ARF + CHF + Cirr + colcan + Coma + lungcan + MOSF + sepsis,
data = mydata,
method = "nearest",
distance = mydata$ps,
ratio = 1
)
matched_data <- match.data(m.out)Assessmening Covariate Balance (SMDs)
confounders <- c(
"age", "female", "meanbp1", "aps",
"ARF", "CHF", "Cirr", "colcan",
"Coma", "lungcan", "MOSF", "sepsis"
)
# Before matching
balance_before <- CreateTableOne(
vars = confounders,
strata = "treatment",
data = mydata,
test = FALSE
)
# After matching
balance_after <- CreateTableOne(
vars = confounders,
strata = "treatment",
data = matched_data,
test = FALSE
)
cat("Standardized Mean Differences Before Matching:\n")Standardized Mean Differences Before Matching:print(balance_before, smd = TRUE) Stratified by treatment
0 1 SMD
n 3551 2184
female (mean (SD)) 0.46 (0.50) 0.41 (0.49) 0.093
ARF (mean (SD)) 0.45 (0.50) 0.42 (0.49) 0.059
CHF (mean (SD)) 0.07 (0.25) 0.10 (0.29) 0.095
Cirr (mean (SD)) 0.05 (0.22) 0.02 (0.15) 0.145
colcan (mean (SD)) 0.00 (0.04) 0.00 (0.02) 0.038
Coma (mean (SD)) 0.10 (0.29) 0.04 (0.20) 0.207
lungcan (mean (SD)) 0.01 (0.10) 0.00 (0.05) 0.095
MOSF (mean (SD)) 0.07 (0.25) 0.07 (0.26) 0.018
sepsis (mean (SD)) 0.15 (0.36) 0.32 (0.47) 0.415cat("\n\nStandardized Mean Differences After Matching:\n")
Standardized Mean Differences After Matching:print(balance_after, smd = TRUE) Stratified by treatment
0 1 SMD
n 2184 2184
age (mean (SD)) 60.90 (17.90) 60.75 (15.63) 0.009
female (mean (SD)) 0.44 (0.50) 0.41 (0.49) 0.044
meanbp1 (mean (SD)) 70.64 (32.88) 68.20 (34.24) 0.073
ARF (mean (SD)) 0.50 (0.50) 0.42 (0.49) 0.166
CHF (mean (SD)) 0.09 (0.29) 0.10 (0.29) 0.017
Cirr (mean (SD)) 0.03 (0.16) 0.02 (0.15) 0.021
colcan (mean (SD)) 0.00 (0.04) 0.00 (0.02) 0.030
Coma (mean (SD)) 0.04 (0.20) 0.04 (0.20) 0.018
lungcan (mean (SD)) 0.00 (0.04) 0.00 (0.05) 0.010
MOSF (mean (SD)) 0.09 (0.28) 0.07 (0.26) 0.051
sepsis (mean (SD)) 0.23 (0.42) 0.32 (0.47) 0.200Check covariate balance graphically: Love plot
bal.tab(m.out, un = TRUE) # print balance summaryBalance Measures
Type Diff.Un Diff.Adj
distance Distance 0.7374 0.1677
age Contin. -0.0647 -0.0096
female Binary -0.0462 -0.0220
meanbp1 Contin. -0.4869 -0.0713
ARF Binary -0.0290 -0.0824
CHF Binary 0.0261 0.0050
Cirr Binary -0.0268 -0.0032
colcan Binary -0.0012 -0.0009
Coma Binary -0.0525 0.0037
lungcan Binary -0.0073 0.0005
MOSF Binary 0.0045 -0.0137
sepsis Binary 0.1721 0.0888
Sample sizes
Control Treated
All 3551 2184
Matched 2184 2184
Unmatched 1367 0love.plot(
m.out,
stats = "mean.diffs",
threshold = 0.1,
abs = TRUE,
var.order = "unadjusted"
)
As you can see from the love plot(most have below 0.1 mean difference value) and SMD values of the before and after matching(nearly all have smd value of <0.1), there is a good matching after we do the PSM. If you still want to have a more conservative matching, you can it by setting a caliper value.
Causal Effect Estimation (After Matching)
We now use the matched datasets to determine the causal risk difference and the causal risk ratio.
# Number in each matched group
n_treated <- sum(matched_data$treatment == 1)
n_control <- sum(matched_data$treatment == 0)
# Calculate risks
risk_treated <- mean(matched_data$died[matched_data$treatment == 1])
risk_control <- mean(matched_data$died[matched_data$treatment == 0])
# Standard errors for risks: we need this for 95%CI
se_treated <- sqrt(risk_treated * (1 - risk_treated) / n_treated)
se_control <- sqrt(risk_control * (1 - risk_control) / n_control)
# Risk difference and CI
risk_difference <- risk_treated - risk_control
se_rd <- sqrt(se_treated^2 + se_control^2)
rd_lower <- risk_difference - 1.96 * se_rd
rd_upper <- risk_difference + 1.96 * se_rd
# Risk ratio and CI (log scale)
risk_ratio <- risk_treated / risk_control
se_log_rr <- sqrt((1 - risk_treated) / (risk_treated * n_treated) +
(1 - risk_control) / (risk_control * n_control))
rr_lower <- exp(log(risk_ratio) - 1.96 * se_log_rr)
rr_upper <- exp(log(risk_ratio) + 1.96 * se_log_rr)
# Print results
risk_treated[1] 0.6804029risk_control[1] 0.6341575risk_difference; c(rd_lower, rd_upper)[1] 0.04624542[1] 0.01812812 0.07436272risk_ratio; c(rr_lower, rr_upper)[1] 1.072924[1] 1.027862 1.119961Therefore, the causal risk difference was 0.046 (95%CI:0.018-0.074) and it doesn’t cross the null point(0) indicating that the harmful effect is statistically significant The causal risk ratio was 1.07 (95%CI: 1.028 - 1.12), suggesting that patients who received RHC had a 7 percent higher risk of death compared to similar patients who did not receive RHC.
Conclusion
In summary, we have seen observational treatment assignment creates confounding and the propensity score summarizes multiple confounders into a single scalar value and can help us achieve a matched data sets. These data sets can be much lower than the original unmatched data sets. Matching discards unmatched subjects (often many), leading to: reduced precision. weaker generalizability,and possibly losing rare treatment subgroups.
In contrast to PSM, Inverse Probability of Treatment Weighting (IPTW) offers an attractive alternative that avoids discarding subjects. Instead of removing unmatched individuals, IPTW re-weights each observation by the inverse of its probability of receiving the treatment(1/propensity score value for treated and 1/(1-propensity score value for control subjects)) actually observed. That will be my next post.
After matching, the difference in outcomes can be interpreted as a causal effect for treated individuals.
If you have enjoyed reading this, consider subscribing for upcoming posts.
