Animating bar graphs

Here we will have a quick look on how to create Gif or animated bar plots

Hello, this is my first ever blog post. Detail explanations of this data vizualization and other upcoming blogs are coming soon! Stay tuned.

#Set working directory
#setwd("F:/github/githubwebsite")

library(readxl)
mystepcount <- read_excel("F:/github/githubwebsite/mystepcount.xlsx")

str(mystepcount)

tibble [8 x 4] (S3: tbl_df/tbl/data.frame)
 $ Date       : chr [1:8] "Sept_14" "Sept_15" "Sept_16" "Sept_17" ...
 $ September  : num [1:8] 14 15 16 17 18 19 20 21
 $ Steps      : num [1:8] 1907 18767 10438 23128 28300 ...
 $ Killometres: num [1:8] 1.1 12.8 7.4 17.1 19.1 12.9 13.7 4.9

library(ggplot2)
library(gganimate)
library(scales)
theme_set(theme_bw())

mystepcount$September <- as.character(mystepcount$September)

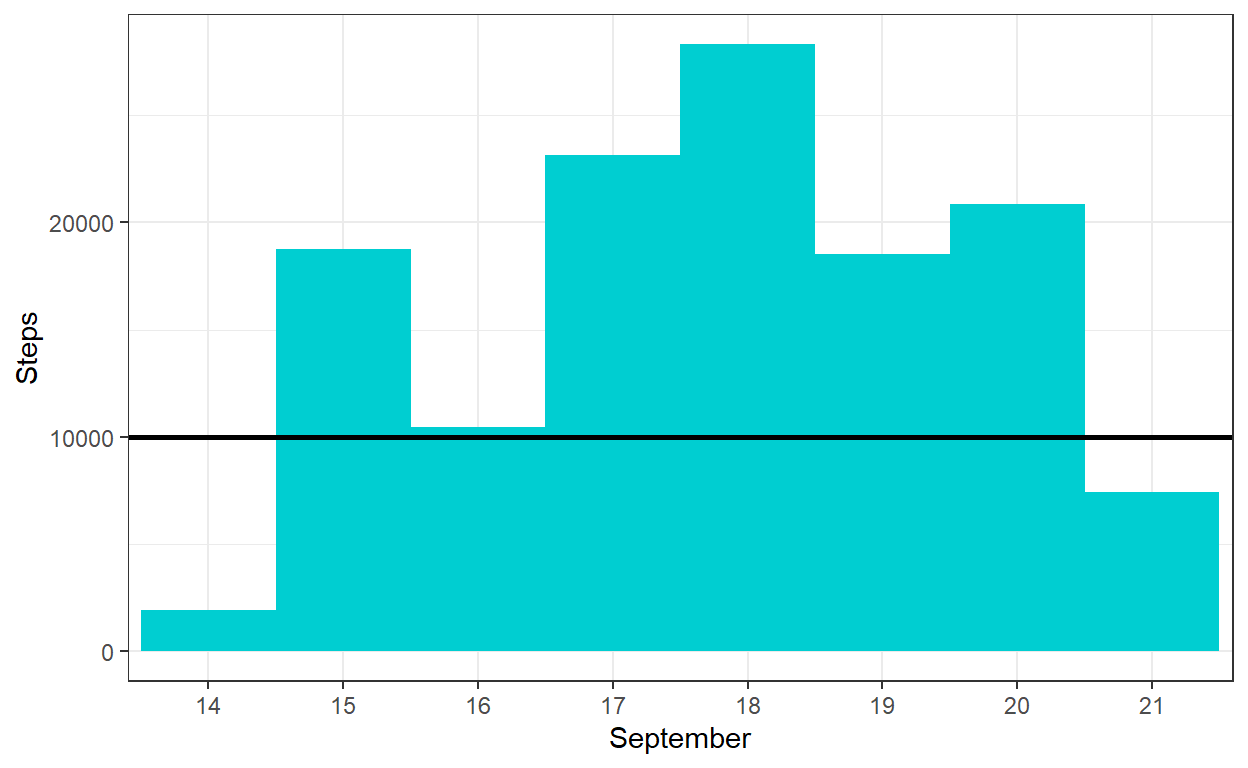

#Plot step counts on the y-axis and days of September on the x-axis
ggplot(mystepcount, aes(x=September,y=Steps)) +
  geom_bar(fill="darkturquoise", stat="identity", width=1, position=position_dodge()) +
    geom_hline(yintercept = 10000, col="black", size=1)

animate(
  ggplot(mystepcount, aes(x=September,y=Steps)) +
  geom_bar(fill="darkturquoise", stat="identity", width=1, position=position_dodge()) +
    geom_hline(yintercept = 10000, col="black", size=1) +
  transition_states(September, wrap = FALSE) +
  shadow_mark() +
  enter_grow() +
  enter_fade() +
  theme(axis.text = element_text(size=16),
        axis.title = element_text(size=16, face="bold")) +
  xlab("September") +
  scale_y_discrete(name="Step counts", limits=factor(c(5000,10000, 15000, 20000, 25000, 30000))) +
  theme(axis.line = element_line(colour = "black"),
          panel.border = element_blank()) ,

  duration = 5
  )
